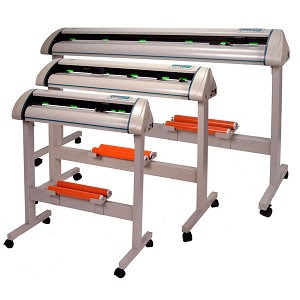

Mesin Cutting Sticker Copam Series

Mesin cutting sticker Copam adalah salah satu mesin cutting sticker buatan China yang terdepan di kelasnya, bersama dengan Redsail menjadi pilihan utama untuk para pemula yang membuka usaha cutting sticker. Terdapat beberapa ukuran dari mesin cutting sticker ini, semua tergantung dari kebutuhan anda.

Berikut adalah spesifikasinya:

Model	CP-2500	CP-3050	CP-3500	CP4050	CP4500
Maximum cutting area	592mmx35m (23.2inx114.8ft)	890mmx35m (35inx114.8ft)	1050mmx35m (41.3inx114.8ft)	1190mmx35m (46.9inx114.8ft)	1350mmx35m (53.2inx114.8ft)
Maximum media width	610mm (24in)	915mm(36in)	1070mm(42in)	1220mm (48in)	1370mm (54in)
Configuration	grit roller
Coordinate origin	coordinate origin specifiable
Number of cutter/pen	1
Standard of blade and holder	Φ2
Material	Calendered self-adhesive vinyl film, flouorescent film, reflective film, paper card or other materials of thickness between 0.05-0.30mm
Maximum velocity	600mm/sec
Mechanical resolution	0.025mm/step
Programmable resolution	0.05mm/step
Distance accuracy	within 0.15% of distance moved
Repeatability	within 0.02mm
Cutting force	500g (can be adjusted by panel)
Command sets	Compatible with HP-GL
Interface	Centronics parallel/RS-23 serias(auto interface recognition)
Processor/Memory	Adapt 16 bits DSP technology, 64Mb Memory
Drive	Divisional motor
Lifting and dropping rate	15times/sec
Acceleration	4g
Power/consumption	110v/250v 50-60HZ. 120W(max)
External dimensions (W*D*H)	950x500x1100mm 37×19.7×43.3in	1250x500x1100mm 49×19.7×43.3in	1410x500x1100mm 55.5×19.7×43.3in	1550x500x1100mm 61×19.7×43.3in	1710x500x1100mm 67.3×19.7×43.3in
Total weight (main frame, horse)	28kgs(15,13)	31kgs(18,14)	34kgs(19.5,14.5)	36kgs (21, 15)	39kgs (23,16)

Untuk harga:

Copam CP-2500 Rp. 8,5 juta

Copam CP-3050 Rp. 11 juta

Copam CP-3500 Rp. 13 juta

Copam CP-4050 Rp. 14,5 juta

Copam CP-4500 Rp. 16,5 juta.

.
